The Intec light series was developed to suit industries with lighter cutting needs. The machine is simple to load and operate, making it ideal in a production or semi-production environment. It is perfect for industries such as Gaskets, Sheet Metal, Tile & Stone, Sign Makers, Plastics, Foam & Rubber, Insulation, and Ducted Pipe System manufacturers.

The Integrated 30HP Intensifier Pump is manufactured exclusively for Techni Waterjet and is capable of delivering 0.6 GPM at 55000 psi continuous running pressure. All high-pressure components are designed and manufactured by KMT, the world leader in intensifier technology. Incorporating an 8” plunger stroke (the longest in the industry) results in fewer strokes and therefore less maintenance and “down time”, increasing the “VALUE” of your investment.

SOFTWARE
Softec™ Waterjet Software
Every Intec® comes standard with Softec™ Waterjet Cutting Software, which has been developed by Techni Waterjet with two very clear goals in mind:

  • To cut parts at minimum cost with the greatest accuracy.
  • To have a simple and intuitive interface with the operator.

The result, is a comprehensive "All-In-One" Windows based software, that is specifically designed for waterjet cutting. This maximizes productivity, and anyone with PC experience can learn to use quickly and easily. Softec™ incorporates many unique features, including: DXF Importation, Focusing Tube Wear Compensation, Off-site Notification, Multiple Origin Points, Maintenance Counters, Auto Mating Part Clearance, Standard Object Library, Re-start Cutting from Anywhere, and many, many more. This will ensure that you get maximum "VALUE" for you capital investment.

The KMT (formerly Ingersol-Rand) Autoline Abrasive Cutting Head, is the must efficient available, by independent US Government testing. This results in you using less garnet, power and consumables per inch of cut than with opposition cutting heads, once again ensuring increased "VALUE"



STANDARD FEATURES

The Intec® Value Series has maintained many of the unique features of Techjet-X2® which has made it one of the most reliable and easy to operate Waterjet cutting machines available today. However, in order to provide the best "VALUE" machine available, it does do away with some features. These are things that do not directly affect the performance or quality of the end product, and are considered by many as "nice but not necessary". All of the features which are not standard on the Intec® may be added as options at any time, either with the original purchase or at some time in the future.

MECHANICAL

The Intec® drive system is a robust and unique design providing super-fast cutting speeds and traverse speeds of almost 1000 inches per minute, with high acceleration and deceleration rates while capable of maintaining high tolerances. Designed specifically for the harsh abrasive waterjet environment, the high precision stainless steel band and high friction pulley system is virtually impervious to the airborne abrasive. It is a simple technology providing high accuracy due to a friction drive having zero backlash. Fully enclosed Bellows that are Double Stitched and Vulcanized to ensure absolute protection of the drive system for the life of the machine.

Highest quality German made, machine grade linear bearings. Power "Z" axis allows fast and efficient Stand Off Height setting.

Stainless Steel protection strip along the front loading area. This will keep the machine looking like new for many years.

The AT2010 Servo Controller System delivers maximum acceleration with ultra high speed feedback to ensure minimum processing time with maximum accuracy and best surface finish. It also incorporates “patented” technology such as the MPG wheel which allows the operator to take the machine along the cutting path, forwards or backwards to any point, simply by winding the hand wheel.

HIGH PRESSURE COMPONENTS

The Integrated 50HP Intensifier Pump, is capable of delivering 1 GPM, at 55000 psi continuous running pressure, resulting in maximum cutting speeds. All high pressure components are designed and manufactured, exclusively for the Intec® by the world leader in Intensifier Technology, KMT Waterjet. Incorporating an 8" Plunger stroke (the longest in the industry) results in fewer strokes and therefore less maintenance and "down time", increasing the "VALUE" of your investment.

Fitted as standard with the KMT Autoline Abrasive Cutting Head. The Autoline uses less Garnet, less Power and less Consumables than any other cutting head available, as tested by the US Government, making it the most efficient available.

SOFTWARE

Softec™ Waterjet Software

Every Intec® comes standard with Softec™ Waterjet Cutting Software, which has been developed by Techni Waterjet with two very clear goals in mind:

  • To cut parts at the minimum cost with the greatest accuracy,
  • To have a simple and intuitive interface with the operator.

The result, is a comprehensive “All-In-One” Windows based software, that is specifically designed for waterjet cutting. This maximizes productivity, and anyone with PC experience can learn to use quickly and easily.

At the "Heart" of Softec™ is Tru-Cut Technology, a highly sophisticated algorithms database that determines the optimum cutting speeds and machine ramping characteristics. Once you select the material to be cut, its thickness and surface finish required, the computer will take care of the rest, ensuring the minimum cutting time for any given part.

The Algorithms database was developed with the benefit of over 30 years of waterjet cutting experience from KMT. Through their thorough understanding of the effects of Ultra High Water Pressure, abrasive types and volume, cutting head set ups, corner geometry and the materials to be cut, they can determine the optimum ramping characteristics for any given part.

Other Softec™ Features include:

  • DXF or “G” code programme importation
  • Dynamic wear compensation, to automatically adjust for focusing tube wear
  • Full Costing Package
  • 5 different cut qualities, selectable for each line
  • On-Screen running in real time
  • Re-start cutting from anywhere
  • Comprehensive Alarms Window
  • Maintenance Timers
  • Dynamic piercing and high or low pressure piercing
  • Auto nesting and array nesting
  • Standard objects library
  • Simulation in real time
  • Dry running
  • Auto and manual functions for; kerf compensation, lead in�s/out�s and tabbing
  • Straight or curved lead in�s/out�s
  • Text for all windows fonts
  • Extensive materials data base

CONTROLLER

Techni Waterjet�s new control system, the AT2010, utilizes the very latest CNC and Digital Servo Drive system. Developed by our control system partner, ANCA, the world leader in CNC Tool and Cutter Grinders. ANCA was one of the pioneers of CNC Technology, beginning manufacture in 1974, and today is one of the world�s most respected CNC developers.

The AT2010 provides the following benefits:

  • Single processor architecture gives high processing speed and improved reliability. Data need not be transferred from the user interface processor to the machine control processor. One processor handles all functions without compromising speed and performance.
  • Touch screen interface is a more �natural interface� for the operator, eliminating the need for an external pointing device.
  • USB support allows the user to connect a large range of consumer devices such as USB flash disks, external hard disks, printers, digital cameras etc.
  • CD read/write, DVD read provides for easy backup and permanent storage. It also easily facilitates future software upgrades.
  • Built-modem allows for remote monitoring, diagnostics and support.
  • Uninterruptible power supply (UPS) allows saving of active files and safe computer shutdown in the event of blackout, thereby protecting the CNC.
  • Network backup including intranet access and file transfer to workstation.

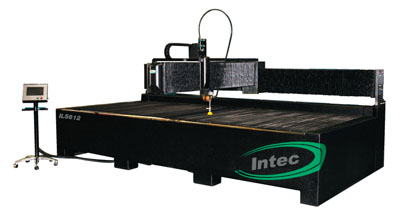

Module ILS55 ILS612
Machine Size (L x W x H)
Does not include intensifier or
bulk abrasive hopper
2500 x
2500 x
2000 mm
(8' 3"x 8' 3" x 6' 7")
4800 x
2800 x
2000 mm (15' 9" x 9' 3" x 6' 7")
Machine Weight
(empty)
1600 kg
(3530 lbs)
2900 kg
(6400 lbs)
Machine Weight
(with water)
4000 kg
(8820 lbs)
8300 kg
(18300 lb)
Cutting Table Size 1660 x 1970 mm
(5' 5" x 6' 5")
1900 x 4200 mm
(6' 2" x 13' 10")
Cutting Area 1525 x 1525 mm
(5' x 5')
1830 x 3660 mm
6' x 12')
Accuracy of Motion* ± 0.12mm
(0.005)
± 0.012mm
(0.005)
Repeatability ± 0.025 mm
(0.001")
± 0.025 mm
(0.001")
Max. Air Speed 25m/min
(1000 ipm)
25m/min
(1000 ipm)
Max. Cutting Speed 25m/min
(1000 ipm)
25m/min
(1000 ipm)
Max. Cutting
Pressure
3800 bar
(55000 psi)
3800 bar
(55000 psi)
Max. Material Thickness**
(Water Only)
235 mm
(9.25")
235 mm
(9.25")
Max. Material Thickness***
(Abbrasive)
115 mm
(4.5")
115 mm
(4.5")
IMPORTANT NOTICE: Due to constant endeavour to improve the machine, the specification may be changed without prior notice.
* Refer to machine specifications on website for details
** Water onlyu with 3" nozzle tube
*** Abrasive cutting with 4" nozzle tube
