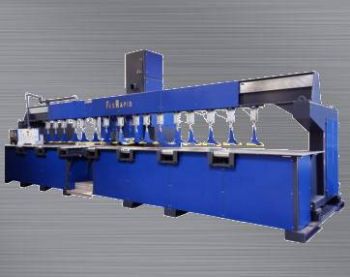

GERIMA FASRAPID


Static edge milling machine for cutting welding bevels or visible bevels on straight- edged steel plate.


(동영상이 끊길 경우, 잠시 일시정지를 눌러 주시기 바랍니다)

  • Suitable for steel, fine-grained steel, stainless steel and wear resistant steels
  • Can be used on small and large workpieces
  • Bevel widths up to 60 mm
  • Bevel angles from 0 to 80
  • High-quality bevels

Specially designed for machining very hard materials.

Technical Specification

Technical data GERIMA

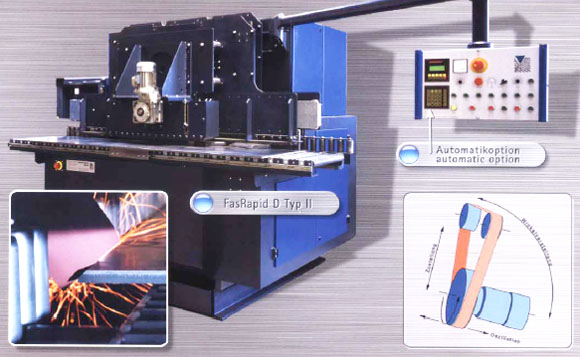

FasRapid D
Typ I
GERIMA
FasRapid D
Typ II
GERIMA
FasRapid D
Typ III
GERIMA FasRapid T
Typ I
GERIMA
FasRapid T
Typ II
GERIMA
FasRapid T
Typ III
plate thickness (mm) 2 - 20 2 - 100 2 - 40 2 - 100 2 - 100 2 - 100
stroke (m) infinitely / 1 infinitely / 2 infinitely / 3 3 - 20 3 - 20 6 - 20
base bevel () 0 - 60 0 - 80 0 - 80 --- --- 0 - 45
upper bevel () --- --- 0 - 45 0 - 60 0 - 80 0 - 80
feed (m/min) 0,2 - 3,5 option: with rapid traverse 7 m/min 0,2 - 3,5
option: with rapid traverse 7 m/min
0,2 - 3,5
option: with rapid traverse 7 m/min
0,2 - 3,5
option: with rapid traverse 7 m/min
0,2 - 3,5
option: with rapid traverse 7 m/min
0,2 - 3,5
option: with rapid traverse 7 m/min
abrasive belt wxl (mm) 60
x 3.000
100/150/200
x3.200
100/150
x3.200
100/150/200
x3.200
100/150
x3.200
100/150
x3.200
oscillation no yes yes no yes yes
grinding motor (kW) 7,5 9,2/11/15 9,2 7,5 9,2/11/5 9,2/11/15
size lxwxh (mm) 1.800
x1.800
x2.400
3.000
x2.200
x2.600
2.200
x2.200
x2.600
6.000
x3.000
x2.600
3.000+stroke
x3.000
x2.600
3.000+stroke
x3.000
x2.600
weight approx. (t) 1,6 2,4 2,8 4,6 4,8+0,8 stroke 8,6+1,2 stroke
