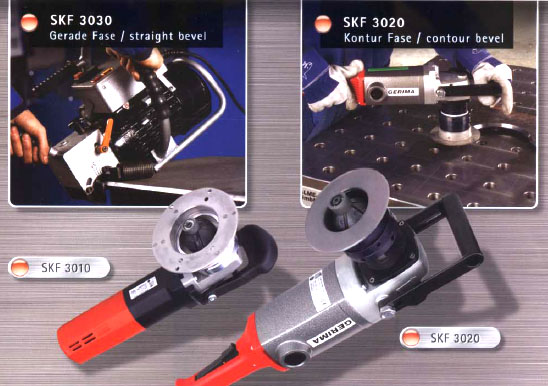

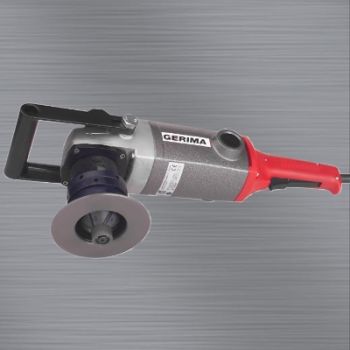

Portable edge milling machine for cutting welding bevels or visible bevels on straight edges and curves (drilled holes etc.)
(동영상이 끊길 경우, 잠시 일시정지를 눌러 주시기 바랍니다)
- Suitable for aluminium, steel and stainless steel
- Can be used on small and large workpieces
- Bevel widths up to 15 mm
- Bevel angles from 10 to 80
- Milling heads can cover a
range of radii from 2 mm to
6 mm
- High-quality bevels
Specially designed for cutting bevels on curved edges and around drilled holes.
| Technical data |
GERIMA-SMA 30 (SKF 3012 R) |
GERIMA-SMA 40 (SKF 3015 R-TF) |
GERIMA-SMA 50 (SKF 3020 R) |
GERIMA-SMB 60 (SKF 3030) |
| bevel width (mm) |
0,5 - 7 |
1 - 8 |
1 - 15 |
1 - 20 |
| radius (mm) |
3,0 |
2 - 4 |
2 - 6 |
2 - 6 |
| bevel angle () |
30 / 45 / 60 |
10 - 80 |
10 - 80 |
15 - 60 |
| power (Watt) |
1.400 |
1.500 |
2.000 |
1.100 |
| spindle speed (rpm) |
2.500-7.500 |
2.500-7.500 |
2.400-7.300 |
2.820 |
| weight (kg) |
8,0 |
5,5 |
9,0 |
22,0 |
| voltage (V/Hz) |
230/50 |
230/50 110/50 110-120/60 |
230/50 110/50 110-120/60 |
230/50 110/50 110-120/60 |
| inserts |
3 |
5 |
5 |
8 |
|
