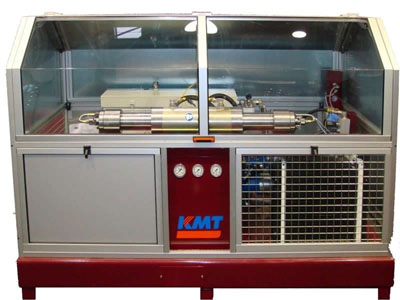

High-Pressure Waterjet Pump System with two synchronized mono-intensifiers without accumulator.
| Model |
Model |
Water Consumption |
Orifice Size |
| S 30 |
30 HP - 22 KW |
2,8 lt/min - 0,7 gal/min |
0,25 mm - 0,010’’ |
| S 50 |
50 HP - 37 KW |
3,8 lt/min - 0,9 gal/min |
0,35 mm - 0,014’’ |
 |
• Ceramic Plungers
• Electronic Pressure Control
• Working Pressure: 4.000 Bar = 58.000 PSI
• Design Pressure: 4.130 Bar = 60.000 PSI
• Attenuator |
| Model |
Model |
Water Consumption |
Orifice Size |

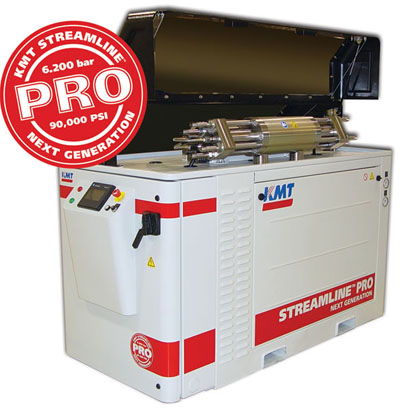

| PRO 90 |
60 HP - 45 KW |
2,5 lt/min - 0,61 gal/min |
0,25 mm - 0,010’’ |
ADVANTAGES
- Increase cutting power density by 83%
¼” = 6 mm aluminum
1/8” = 3 mm titanium
- Increase Max. cutting thickness
Titanium up to 10” = 250 mm
Steel up to 12” = 300 mm
Aluminum up to 16” = 400 mm
- Increase cutting speeds: up to 250 % more
with identical abrasive mass flow rate
- Reduced abrasive consumption: 30 % less
- Riduzione del 30 % del consumo di abrasivo
- Reduction of groove zone area and increase of cutting quality up to 3 times better with identical cutting speed (less roughness degree)
- Cutting harder material such as ceramics
• Electronic Pressure Control
• Working Pressure: 6.200 Bar = 90.000 PSI
• Design Pressure: 6.600 Bar = 96.000 PSI
• Attenuator Volume: 2 lt = 1/2 gal
|
