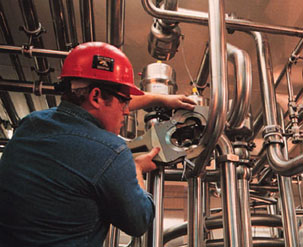

용접 헤드
모델 번호 |
튜브/파이프
외경 범위 |

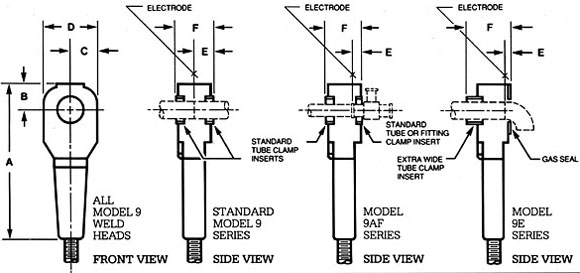

부분별 치수 |
| A |
B |
C |
D |
E* |
F |
| 9-250 |
0.093" - 0.250"
2,3 - 6,3mm |
10.0"
254mm |
.83"
21,0mm |
.66"
16,7mm |
1.31"
33,3mm |
0.25"
6,3mm |
0.480"
12,2mm |
| 9-500 |
0.093" - 0.500"
2,3 - 12,7mm |
9.60"
244mm |
.96"
24,4mm |
1.29"
32,7mm |
2.58"
65,5mm |
| 9-750 |
0.125" - 0.750"
3,2 - 19,0mm |
11.3"
287mm |
1.19"
30,2mm |
1.38"
35,0mm |
2.75"
69,8mm |
0.70"
17,8mm |
1.40"
35,5mm |
| 9AFM-750 |
0.093" - 0.625"
2,3 - 16,0mm |
0.25"
6,3mm |
1.29"
32,7mm |
| 9-1500 |
0.250" - 1.500"
6,3 - 38,1mm |
13.00"
330mm |
1.88"
47,7mm |
2.00"
50,8mm |
4.00"
101,6mm |
1.41"
35,8mm |
2.81"
71,4mm |
| 9AF-1500 |
0.250" - 1.000"
6,3 - 25,4mm |
.85" - .96"
21,6 - 24,4mm |
2.72"
69,1mm |
| 9E-1500 |
0.250" - 1.315"
6,3 - 33,4mm |
0.37"
9,4mm |
3.375"
85,7mm |
| 9AFM-1500 |
0.250" - 1.00"
6,3 - 25,4mm |
12.97"
329,4mm |
1.88"
47,7mm |
2.00"
50,8mm |
4.00"
101,6mm |
0.25"
6,3mm |
2.22"
56,4mm |
| 9-2500 |
0.750" - 2.500"
19,0 - 63,5mm |
15.75"
400mm |
2.62"
66,5mm |
2.88"
73,1mm |
5.75"
146,0mm |
1.72"
43,7mm |
3.44"
87,4mm |
| 9AF-2500 |
0.750" - 2.000"
19,0 - 50,8mm |
.89" - 1.12"
22,7 - 28,4mm |
3.38"
85,8mm |
| 9E-2500 |
0.750" - 2.375"
19,0 - 60,3mm |
0.37"
9,4mm |
4.47"
113,5mm |
| 9-3500 |
1.000" - 3.500"
25,4 - 88,9mm |
16.75"
425mm |
3.12"
79,2mm |
3.63"
92,2mm |
7.25"
184,1mm |
1.72"
43,7mm |
3.44"
87,4mm |
| 9E-3500 |
1.000" - 3.250"
25,4 - 82,5mm |
0.37"
9,4mm |
4.75"
120,6mm |
| 9-4500 |
1.500" - 4.500"
38,1 - 114,3mm |
19.00"
483mm |
4.25"
107,9mm |
4.50"
114,3mm |
9.00"
228,6mm |
2.00"
50,8mm |
4.00"
101,6mm |
| 9E-4500 |
1.500" - 4.000"
38,1 - 101,6mm |
0.37"
9,4mm |
5.02"
127,5mm |
| 9ER-4500 |
1.500" - 4.500"
38,1 - 114,3mm |
| 9-7500 |
2.875" - 7.500"
73,0 - 190,5mm |
22.00"
558mm |
5.68"
144,3mm |
6.12"
155,4mm |
12.25"
311,1mm |
2.16"
54,8mm |
4.32"
109,7mm |
| 9E-7500 |
2.875" - 6.625"
73,0 - 168,3mm |
0.53"
13,4mm |
5.22"
132,6mm |
 |
| * 이 외의 "E" 치수의 용접 헤드 또는 다른 추가적인 사양이 요구되는 경우에 저희에게 문의 바랍니다. |
|
