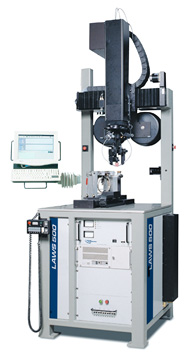

Liburdi Automation™ : Laws 500

Integrated Robotics, Welding and Vision System

This multi-axis robotic system offers fully coordinated motion for welding complex geometric components. The optional capability of integrating a robotic arm for part manipulation, loading and unloading of components.

The LAWS 500 is in service globally as a stand alone system for single part flow or as a fully integrated system in an automated production cell.

To accomplish the necessary motion and vision operations a high end, latest generation “digital signal processor” DSP I/O is coupled with a state of the art computer controller.
Available 3D vision optics for part characterization and motion control.

Graphical user interface with English block by block text program.

Ease of use with accurate, repeatable performance.

We also offer the option of Liburdi’s “Turn-Key” systems, which include the development of the weld process, NDT examination, metallurgical certification, training and start-up.

Smallest shop foot print 40”(102cm) x 36”(91 cm) x 95”(241 cm) for an automated welding system.

Automated Part Handling
Rack mounted trays are inserted into the loading cell with 40-70 blades depending on size for batch processing. The robot picks and places each blade one by one in sequence for weld tip restoration. Blades are then placed back in their rack for the next batch after each weld. Please consult factory for compatible blade types and batch processing solutions that will increase your productivity.


    Liburdi Vision System™ (LVS)
    Proven 3-dimensional imaging and processing to derive torch path and weld parameters in less than 1 second. Vision is fully integrated with PC based Liburdi Robotic Controller™ (LRC). Real time monitoring during welding is available with video playback.

    Liburdi Robotic Controller™(LRC)

    Powerful PC based controller for high reliability and ease of maintenance.   Incorporates graphic display features for critical weld parameters and easy to use English language programming. Custom hand held pendant designed specifically for welding.

    Liburdi Pulsweld® Welding Power Source

    Available with integral 50, 100 or 200 Amp precision power source configured for GTAW, PAW or variable polarity pulse welding with assured repeatability and accuracy for critical welding applications.

    Automation Support

    Liburdi Automation provides single source design and support responsibility for all robotic motion systems, vision systems, welding power supplies and advanced controllers. Complete engineering support is also available to develop weld parameters, inspect the welds and perform the required metallurgical tests to qualify the weld process.
