  • 14.5 kW / 20 HP motor
  • 67 x 1.6 mm / 2 5/8 x .063” blade
  • 1250 x 810 mm / 50 x 32 inch capacity
  • Auto Feed Blade Feed compensation

The Peddinghaus 1250 Straight Cut Series saw is the industry benchmark for Speed Sawing by incorporating a large 1250 x 810 mm (50 x 32 inch) capacity. By employing the technologies of one-touch operation, with Auto Feed Blade Feed compensation, the 1250 delivers the fastest processing times in the industry. The 1250 Straight Cut Series saw remains the perfect complement to the Peddinghaus BDL 1250 or PCD 1100 structural drill lines.





1250-810 Band Saw

The 1250-810 is the benchmark for structural steel band saw productivity. Speed Sawing Technology was developed on this rugged model, which achieves high material removal rates and superior cut quality. Some users report a 25% increase in overall productivity.

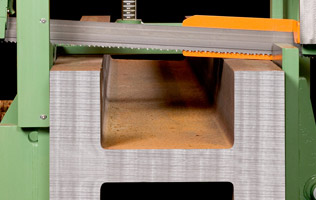

Fastest, Most Accurate Cutting Times

From the heaviest jumbo column to the lightest bundle or channel section, the 1250-810 delivers the fastest, most accurate cutting times in the industry.





Consistant Feed and Speed

The Peddinghaus auto feed insures consistent feed and speed rates on all materials and cross sections.

The laser line assists the operator in accurate cut location.



Easy Recycling

Chip collection is easy with the in line chip conveyor. By employing PeddiCool micro mist blade technology, all coolant problems are eliminated.



PeddiCat Band Saw Blades

The superior design of the PeddiCat band saw blades by Peddinghaus increase throughput and extend your cutting capacity.





PeddiCool Lubricant

PeddiCool is the environmentally friendly solution to flood coolant problems – no mess, no contamination, or disposal issues. Try some today!





SPECIFICATION

PCBS 1250-810 PCBS 1250-510
Cutting Capacity 90° 1250 mm x 810 mm 1250 mm x 500 mm
Passline Height 635 mm 635 mm
Motor 14 kW 14 kW
Machine Weight 4,650 kg 4,650 kg
Structural W1118 x 7239 W1118 x 7239
Structural W1016 x 8331 W1016 x 8331
Structural W914 x 21539 W914 x 21539
Structural W356 x 18542 W356 x 18542
Tube 500 mm 500 mm
Solid Material 1245 mm 1245 mm
Plate 1245 mm x 150 mm 1245 mm x 150 mm
Saw Blade 9799 mm x 66 mm x .16 mm 9799 mm x 66 mm x .16 mm
