Stock lengths up to 6M / 20 ft can be processed by one operator in a true One Pass Continuous automated process
(동영상이 끊길 경우, 잠시 일시정지를 눌러 주시기 바랍니다)
The Peddinghaus FPB 1800 Plate Processing System combines an exceptional CNC nesting software with the technologies of hydraulic punching for any shaped hole, such as squares or obrounds; contour thermal cutting via high definition plasma; and carbide part marking into one compact machine.
The standard by which any plasma cutting / steel plate punching system is measured. Over 120 international installations in less than a decade attest to its' productivity. Base plates, caps, stiffeners, are a breeze when you can process in under 2 minutes and up to a %50 savings.
Continuous Material Flow
Continuous material flow truly equals True efficiency saving costly material handling. Engineered into this machine's rugged design Peddinghaus has optimized every operation. Run different material sizes & thicknesses back to back through this machine without ever stopping your production.
Extreme Punching Power

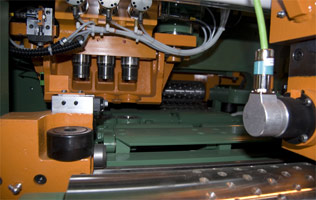

The proven 177 ton triple tool assembly accelerates parts production....adding to your bottom line.
Capable of punching round, square or slotted holes, this inline Punch saves countless material handling steps by punchiing your material at the same time it is cut and marked.
Power of Plasma
This Peddinghaus Plate Machine comes power packed with a powerful Plasma unit delivering high speed, accurate contoured cuts.
Equipped with a high speed Hypertherm HT2000 or HPR 260 Plasma Unit the Peddinghaus Plate Lines offer exceptional speed and accuracy.
True 1 Pass Processing
The Peddinghaus plate machine comes standard with this unique machine design which saves you the hidden labor, inventory, and material handling costs
While other machine manufacturers taught they have a 1 pass design we can prove it. On the Peddinghaus Plate lines your cutting, measuring, part marking, part drilling, part punching are done in one continuous flow.
Integrated Carbide Marking
The integrated Signoscript carbide marking system provides legible part identification. Automated in the DSTV and DXF import process mark your parts quickly and easily.
Common Cut Lines
Built for nesting parts the control maximizes parts per plate while reducing the amount of scrap
Chain Cutting
Continuous Plasma Cutting reduces stop and starts times while also maximizing consumable life
Higher Arc Times
Continue producing parts while other machines have to shut down production to finish the cutting and scrap removal process.
The Peddinghaus FPB 1800 Plate Processing System combines an exceptional CNC nesting software with the technologies of hydraulic punching for any shaped hole, such as squares or obrounds; contour thermal cutting via high definition plasma; and carbide part marking into one compact machine.
