  • 1.5kW / 2HP motor
  • 300 x 260 mm / 11 x 10 inch capacity
  • 90 degree cutting
  • 30 degrees right, 30 degrees left
  • Stepless cutting pressure regulation with end of cut sensing and head return.

As the newest addition to the bandsaw lineup, the 260 Miter Series Saw has some big shoes to fill... but with a footprint this small, that would be quite a feat! With a 10"x11" capacity and a 2HP motor, this small saw can be a useful tool in any fabrication facility. Add an integrated chip box, micro-mist coolant system, end of cut sensing, and automatic head return, and you have an unbeatable value.





Economical Package

The 260DG Double Miter Bandsaw puts the advantages of Peddinghaus bandsaws in a small economical package. With features like a miter range of 60° in both directions, adjustable clamps for optimum material contact, hydraulic lifting of the saw head, stepless cutting pressure regulation, and a multispeed blade drive, the 260DG is the perfect addition to the shop for any fabricator.



Saving Floor Space

Is floor space a problem in your shop? The 260DG Double Miter Bandsaw brings a 10" x 11" sawing capacity to a footprint of only 67.7" by 31.5", and uses a conveniently located integrated chip box, door mounted mist coolant system, and slide away electrical enclosure to make routine maintainence a breeze.

Quick Adjust Miter System

The 260DG Double Miter Bandsaw features a quick adjust miter system lets you make fast, accurate miter adjustments while keeping the same point of intersection with the blade and material. Using an easy to operate locking arm and a radial needle and gauge system, the 260DG allows your miter adjustments to be accurate to 1/2°.

End of Cut Sensor

The 260DG Double Miter Bandsaw uses an end of cut sensor to stop the blade drive after the saw has completed cutting the material while hydraulic lifting of the saw head prepares the saw for the next cut cycle.

Micro Mist Coolant System

With an integrated Micro Mist coolant system, the 260DG Double Miter Bandsaw comes ready to use with PeddiCool mist coolant. PeddiCool mist coolant is applied directly to the blade to increase blade life and cut times, and removes the clean up time inherent to flood coolant systems.

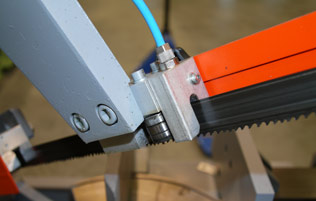

Peddicat Blades

The 260DG Double Miter Bandsaw uses carbide blade guides and an adjustable guide arm to guide the special PeddiCat blades squarely through any profile.



Powerful Two Speed Motor

A powerful two speed motor combined with a tough gearbox allow the 260DG Double Miter Bandsaw quick cut times on almost any material.







SPECIFICATION

260 DG
Capacity 30° Flat (Left) 120 x 120 mm
Capacity 45° Flat (Left) 180 x 180 mm
Capacity 90° Flat 300 x 260 mm
Capacity 45° Flat (Right) 180 x 180 mm
Capacity 30° Flat (Right) 120 x 120 mm
Capacity 30° Round (Left) 130 mm
Capacity 45° Round (Left) 200 mm
Capacity 90° Round 260 mm
Capacity 45° Round (Right) 200 mm
Capacity 30° Round (Right) 130 mm
