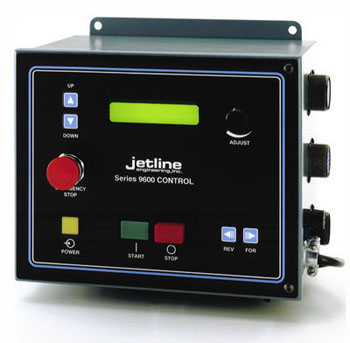

9600 Controller

9600 Microprocessor Weld Controllers

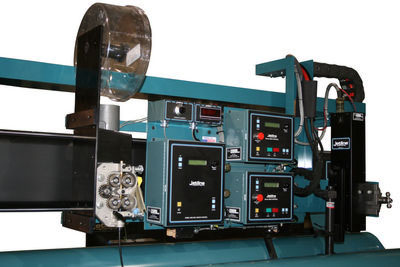

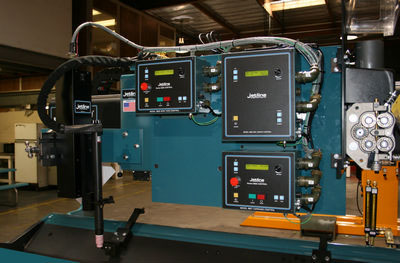

The 9600 series controls are the standard Jetline control and sequencer used on our motor-driven equipment. The 9600 controls can be used for either longitudinal or circumferential welding systems.

• Designed to control all motor driven Jetline equipment
• Provides programmable speed control with travel start and stop delay times
• Provides a closing contact to initiate and extinguish the welding arc
• Provides a contact for a pneumatic torch with start and stop delay times
• Closed-loop control is available for better speed holding accuracy and display of actual travel speed
• Can be used with GTAW, PAW, GMAW, FCAW, and SAW welding processes
• User-friendly front panel layout and software routines for setup and operation
• Easy to integrate with other 9600 family controls
• Can be used to update old Jetline or other manufacturers equipment

• 9627 is used to control the travel speed for linear welding applications such as:
  • Longitudinal Seam Welders
  • Side Beam Track and Carriage Systems
  • Powered Turning Roll Drivers
  • Compatible with other manufacturers equipment
• 9640 is used to control rotation speed in circumferential welding applications such as:
  • Welding Positioners
  • Welding Lathes
  • Compatible with other manufactures equipment

Related Products:

• 9629 Controller controls wire feed speed for hot and cold wire feeders
• 9690 Controller controls arc gap/length for arc length controls
