Automatic Seam Welders

올해는 몇년도입니까?

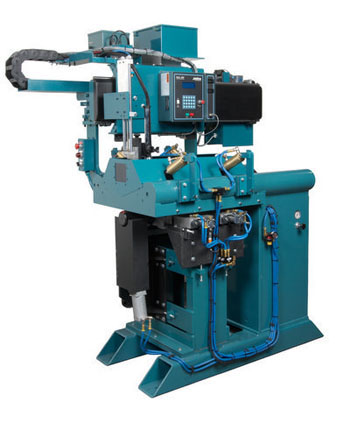

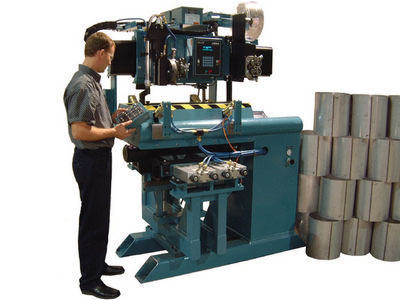

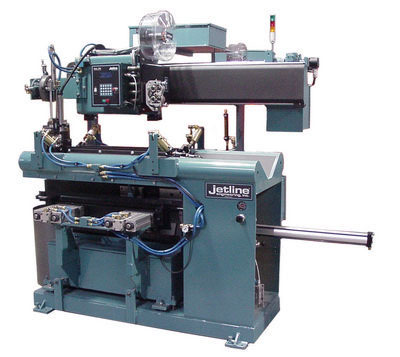

LWA - Automatic Longitudinal Seam Welders

  • For high productivity seam welding of cylinders, using GTAW, or PAW processes
  • The part loading tooling can be rapidly changed to accommodate different part diameters
  • The automatic centering device, part hold down blade, finger banks, and part loading cylinders are sequenced thru a PLC (programmable logic control) and interfaced to the included 9500 system control.
  • The side beam track is fitted with hardened round ways for smooth precise travel
  • The carriage uses hardened bearings and a precision DC motor with tach generator feedback
  • Linear style drive for the carriage is standard
  • Various speed ranges and speed holding accuracies are available

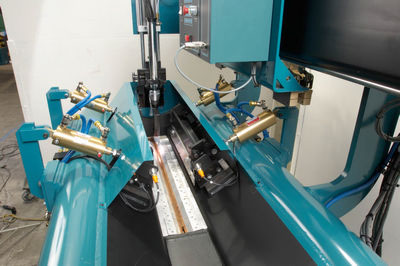

  • Copper backing bars and reversible copper finger tips are standard
  • 9500 microprocessor control is standard
  • Because of mechanical limitations, the design of the system is unique to part length and diameter.

Common part dimensions are:
  • Diameter range: 2” (50 mm) to 28” (711 mm)
  • Length: 9” (228 mm) to 39” (990 mm)
  • Please consult factory for more information

Related Products:
  • Planisher
  • Circumferential systems
  • Coil splicer
