HD Clamshell

올해는 몇년도입니까?

The big clams come out for large diameter, heavy wall pipe cutting and pipe beveling applications.

(동영상이 끊길 경우, 잠시 일시정지를 눌러 주시기 바랍니다)

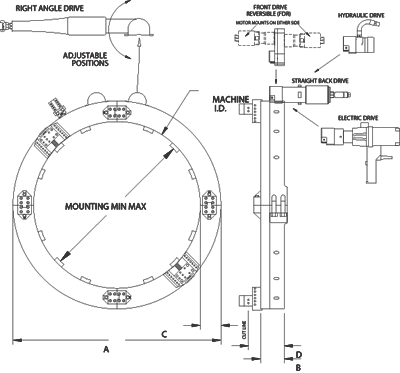

The HD Series Clamshells from D.L. Ricci Corp. are designed for large diameter, heavy cutting applications. These big split frame clamshell machines are portable for on-site machining applications and can accommodate flange and pipe sizes ranging from 28" to 110" OD Utilizing our patented, fully adjustable, heavy duty bearing design, these portable type pipe cutting machines are capable of cutting, beveling, facing, boring and OD turning on all types of wall thickness. With its 5" axial and 4.5" profile, the split frame HD series machine can fit into tight work areas where other large machines cannot. As a result of its superior strength, the HD pipe cutting and beveling machines are ideal for all on-site machining applications in new construction, decommissioning, component replacement and fabrication projects.
