World's largest gear driven clamshell lathe for up to 177" OD pipe cutting and pipe beveling applications.

(동영상이 끊길 경우, 잠시 일시정지를 눌러 주시기 바랍니다)

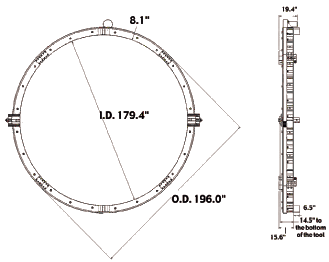

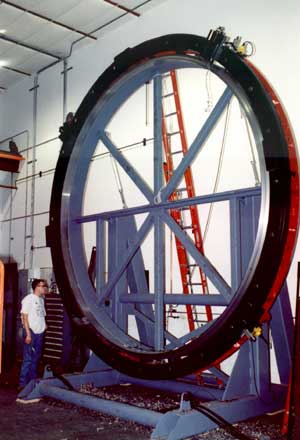

The MM180 Clamshell Lathe from D.L. Ricci Corp. was designed for very large diameter, heavy cutting and beveling applications. This World's Largest gear driven split frame clamshell is portable for on-site machining applications and can accommodate flange and pipe sizes ranging from 144" to 177" OD. Utilizing our patented, fully adjustable, heavy duty bearing design, these portable type pipe cutting machines are capable of cutting, beveling, facing, boring and OD turning on all types of wall thickness. As a result of its superior strength, the MM180 pipe cutting and beveling machines are ideal for all on-site machining applications in new construction, decommissioning, component replacement and fabrication projects. Two patents are pending as a result of this new technology.

When you want big time accuracy in a portable clamshell lathe, with lots of machining options, you want the MM180 from D.L. Ricci Corp.
