Portable Boring Bar

올해는 몇년도입니까?

Modular designed boring in two configurations, either push pull or feed screw design.

(동영상이 끊길 경우, 잠시 일시정지를 눌러 주시기 바랍니다)

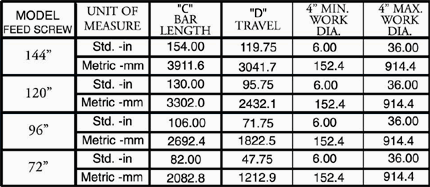

The D.L. Ricci Corp. Portable Boring Bars are available in two different configurations, either "Push Pull" or "Feed Screw". The push-pull boring bar design is available for all D.L. Ricci Corp. boring systems while four inch diameter and larger boring bars, accommodate the feed screw design. Both these boring bar configurations can be setup for line boring, blind boring and facing operations.

Our modular design allows the drive unit and alignment mounts to attach anyplace along the portable boring bar, enhancing setup capabilities in even the most difficult of setup situations. The rotational unit of the Portable Boring Bar is compact, with high power to weight performance. Powerful hydraulic or pneumatic motors, coupled with our heavy duty gear box, provide smooth and trouble free cutting.

The mounting systems may consist of the two adjustable bearing end plates, or a combination of a bearing end plate and the ID mount spider system. The bearing end plates are designed to adjust in any direction and miter to compensate for any misalignment. Roller bearings are used in all setup fixtures to assure smooth, accurate cutting performance. The power feed unit for both types of bars ("Push-Pull" or "Feed Screw") is a reversible, variable feed rate servo drive.
