Further expanding the capabilities of our Milling Machines we present the MiniMill.

(동영상이 끊길 경우, 잠시 일시정지를 눌러 주시기 바랍니다)

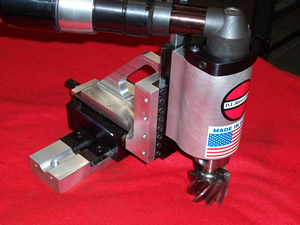

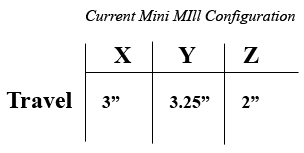

Extending the range and versatility of our line-up of Portable Milling Machines is our new D.L. Ricci Corp. Mini-Mill. Like our Portable Mill, the Mini-Mill is capable of traveling and machining in all axis (XYZ). The lightweight, economical and highly portable Mini-Mill is ideal for onsite machining small areas accurately. These Portable Mills can be clamped or bolted directly onto the part being machined or fabricated. Setup jigs and parallel-mounting fixtures can be used to position these mini mills for difficult work area conditions. Any machinist familiar with machining practices will find the Mini-Mill simple to setup and operate, even upside down. The Mini-Mill has 3" of "X" travel, 3.25" of "Y" travel and 2" of "Z" travel and accepts end mill shanks of 3/4" diameter.

The air motor powered Mini-Mill machine tool is designed for rugged onsite machining such as milling, drilling and boring applications on jobs that were previously thought to be impossible without extensive disassembly. The adjustable gibs provide smooth, accurate travel in all axis.

The mounting brackets consist of 3 major pieces for secure and flexible mounting. The Mini-Mill is customizable for a variety of applications. Portable, economical and powerful, check out the new Mini-Mill from D.L. Ricci Corp.
